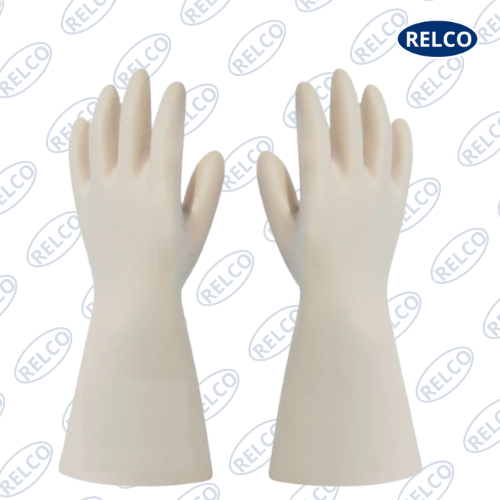

Safety Hand Gloves
₹5,500.00
| Glove Type | Electrical Insulating |
| Material | Rubber |
| Thickness | 2 mm |
| Usage/Application | Low Voltage, Medium Voltage, High Voltage Electrical Lines and Equipment |
| Size | Class 00: Length- 270mm & 360mm Class 0: Length- 270 mm, 360 mm, 410 mm, 460 mm Class 1,2,3: Length- |
| Voltage | 1.1kV, 11kV, 22kV, 33kV, 45kV |
| Application | Live Working |
| Country of Origin | Made in India |
| Color | Class 00: Biege. Class 0: Red. Class 1: White. Class 2: Yellow. Class 3: Green. Class 4: Orange |
Minimum order quantity: 100 pair
Gloves and Mitts of Insulating Material for Live Working as per IS 13774:1993; IS 13774:2021; IEC 60903:2014
Types and Categories
There are six classes of gloves, differing in electrical characterstics, are provided and are designated Class 00, Class 0, Class 1, Class 2, Class 3, Class 4
Six categories of gloves, differing in properties related are provided and are to acid, oil, ozone, mechanical (higher level), and a combination of all are provided and designated designated strength A, H, Z, M and R respectively 2. and for extreme low temperature, Category C.
Standard Length
The following are the standard length for each class of gloves:
- Class 00: Length- 270mm & 360mm
- Class 0: Length- 270 mm, 360 mm, 410 mm, 460 mm
- Class 1,2,3: Length- 360 mm, 410 mm and 460 mm
- Class 4: Length- 410mm and 460mm
Maximum Use Voltage with Colour
*When a colour code is used, the symbol (double triangle) shall correspond to the following code.
The maximum use voltage recommended for each class of glove is designated in the following table:
| CLASS | A.C. R.M.S. (V. R.M.S.) |
D.C. (V) |
Colour/ Color |
| 00 | 500V | 750V | Biege |
| 0 | 1000V (1kV) | 1500V (1.5kV) | Red |
| 1 | 7500V (7.5kV) | 11250V (11.25kV) | White |
| 2 | 17000V (17kV) | 25500V (25.5kV) | Yellow |
| 3 | 26500V (26.5kV) | 39750V (39.750kV) | Green |
| 4 | 36000V (36kV) | 54000V (54kV) | Orange |
